> 易必迪ibidi 細胞定位格子培養皿μ-Dish 35 mm high， glass bottom Grid-500
易必迪ibidi 細胞定位格子培養皿μ-Dish 35 mm high， glass bottom Grid-500
- 產品價格：詢價
- 產品品牌：德國ibidi
- 產品型號：μ-Dish 35 mm high， glass botto
- 產品規格：81168
- 產品類型：易必迪ibidi 細胞定位格子培養皿μ-Dish 35 mm high， glass bottom Grid-500
- 咨詢熱線：021-57790908 / 57790918
-
易必迪ibidi 細胞定位格子培養皿μ-Dish 35 mm high， glass bottom Grid-500相關產品
-
易必迪ibi···
產品簡介

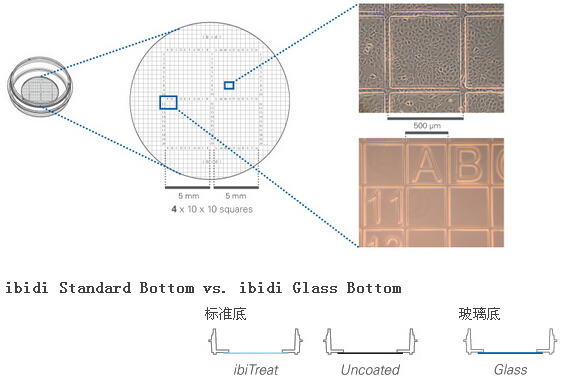

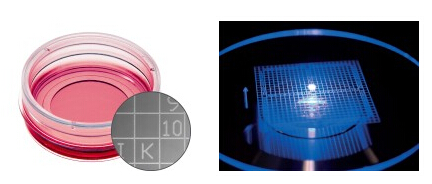

直徑35mm玻璃底培養皿，底部帶有500um網格；
用于細胞和細胞簇的重找回；
便于進行固定區域的細胞計數；
玻璃蓋可用于TIRF和單細胞應用。
產品特點
產品規格
| Grid repeat distance | 500 µm | Coating area using 400 µl | 4.1 cm2 |
| Ø µ-Dish | 35 mm | Ø observation area | 21 mm |
| Volume | 2 ml | Height with / without lid | 14/12 mm |
| Growth area | 3.5 cm2 | ||
| 底部 |
Glass coverslip No. 1.5, selected quality, 170 µm +/- 10 µm |
||
Layout Grid-500
Optical properties
| Refractive index (nD 589 nm) | 1.52 | 1.52 |
| Abbe number | 56 | 55 |
| Thickness | #1.5 (180 µm) | #1.5 (170 µm) |
| Material | Microscopy plastic | D 263M Schott borosilicate glass |
| Autofluorescence | Low | Low |
| Transmission | Very high (even ultraviolet) | High (ultraviolet restrictions) |
| Birefringence (DIC) | Low (DIC compatible*) | Low (DIC compatible*) |
| Other aspects | ||
| Surface modifications |
ibiTreat – tissue culture treated Uncoated – hydrophobic |
Only pure glass |
| Protein coatings | Possible | Possible |
| Gas permeable | Yes | No |
| Material flexibility | High | Low |
| Breakable | No | Yes |
| Recommended for | All kinds of fluorescence microscopy | TIRF and single photon |
產品參數
| 貨號 | 產品名稱 | 規格（個/盒） |
| 81148 | µ-Dish 35 mm,高壁，玻璃底，50微米格子培養皿 | 30 |
| 81168 | µ-Dish 35 mm,高壁，玻璃底，500微米格子培養皿 | 30 |
| 80156 | µ-Dish 35 mm,低壁，ibiTreat底部處理，500微米格子培養皿 | 60 |
| 80151 | µ-Dish 35 mm,低壁，無包被，500微米格子培養皿 | 60 |
| 81166 | µ-Dish 35 mm,高壁，ibiTreat底部處理，500微米格子培養皿 | 60 |
| 81161 | µ-Dish 35 mm,高壁，無包被，500微米格子培養皿 |
60 |
